| Nominal pressure: |
PN ≤1.6MPa |
|
Working medium: |
Water, oil, non corrosive liquid, non flammable gas |
|
Working temperature: |
—20°C≤ T ≤100°C |
|
Pipe theread standard: |
Accord with ISO228 standard |
|

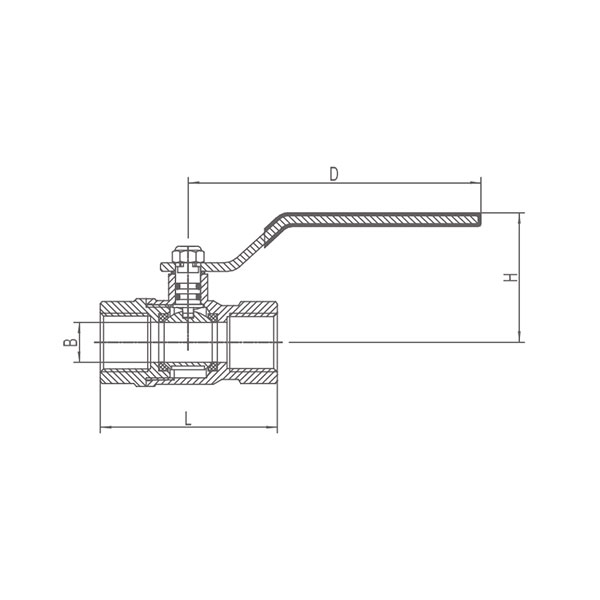

Description |
SIZE |
L |
B |
H |
D |
|
DF 3008 |
1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4" |
63.5 67.5 75.5 83 89.5 105.5 123 139 164 |
63.5 19 25 26 33 41 50 64 80 |
52 52 57 63.5 59 91 98 102 115 |
100 100 130 130 130 145 167 167 228 |
