| Nominal pressure: |
PN ≤1.6MPa |
|
Working medium: |
Water, oil, non corrosive liquid, non flammable gas |
|
Working temperature: |
—20°C≤ T ≤100°C |
|
Pipe theread standard: |
Accord with ISO228 standard |
|
Description |

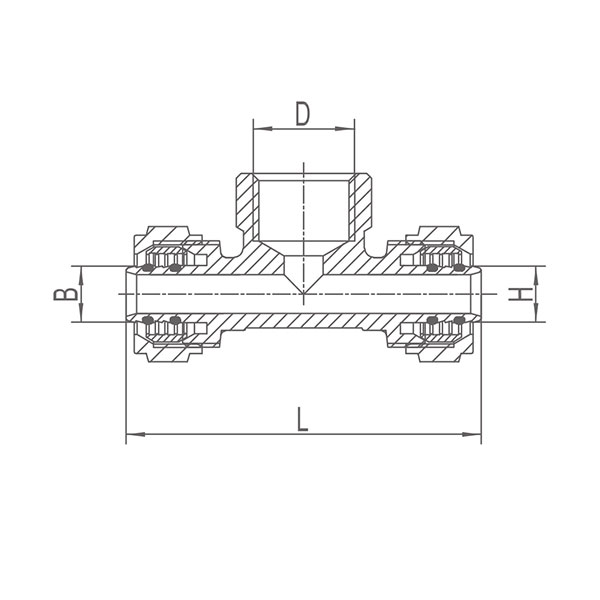

SIZE |
L |
B |
D |
H |
|
Male adapter |
40x3/4" x40 40x11/4" x 40 75x21/2"x 75 75x2x 75 63x1x 63 40x1x 40 50x1x 50 63x2x 63 |
126 144 227 209 180 131 132 209 |
31.8 31.8 59.6 59.6 50.7 31.8 40.8 50.7 |
31.8 31.8 59.6 59.6 50.7 31.8 40.8 50.7 |
G3/4 G11/4 G21/2 G2 G1 G1 G1 G2 |
