| Nominal pressure: |
PN ≤1.6MPa |
|
Working medium: |
Water, oil, non corrosive liquid, non flammable gas |
|
Working temperature: |
—20°C≤ T ≤100°C |
|
Pipe theread standard: |
Accord with ISO228 standard |
|
Description |

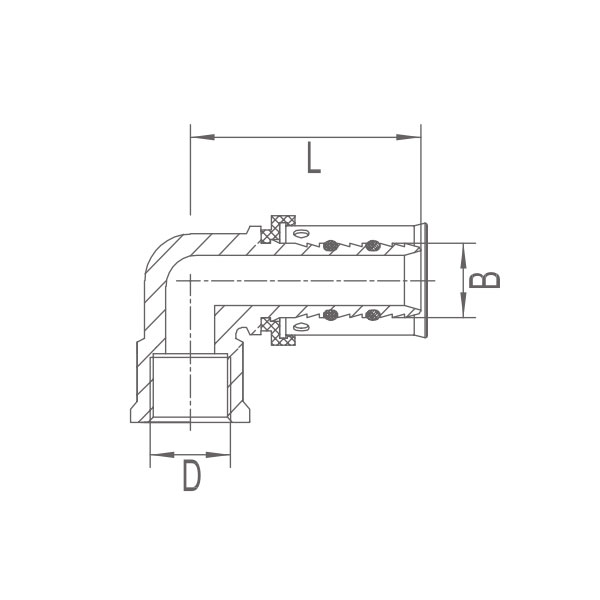

SIZE |
L |
B |
D |
|

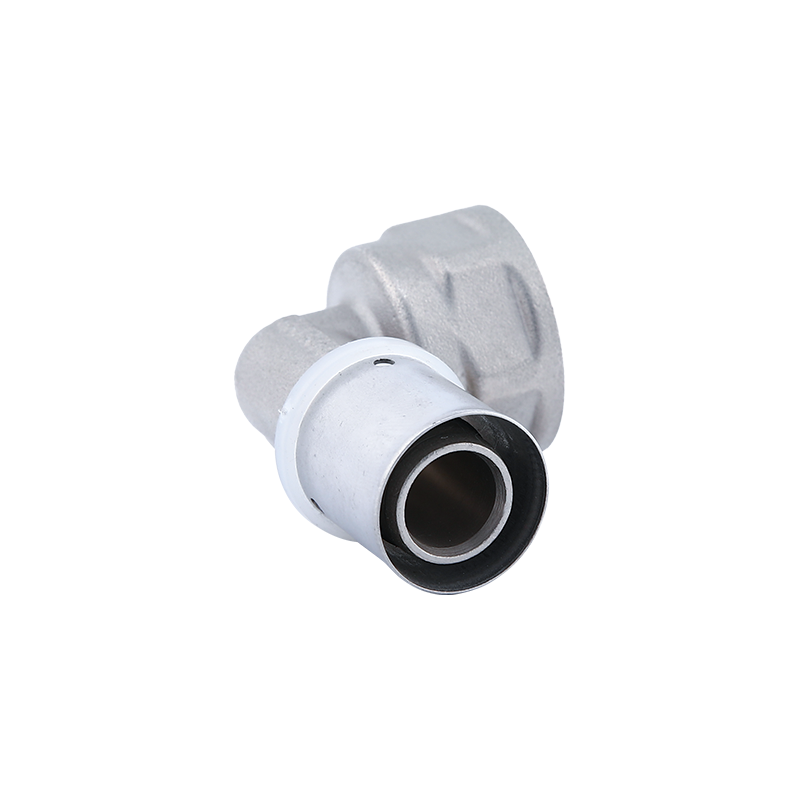

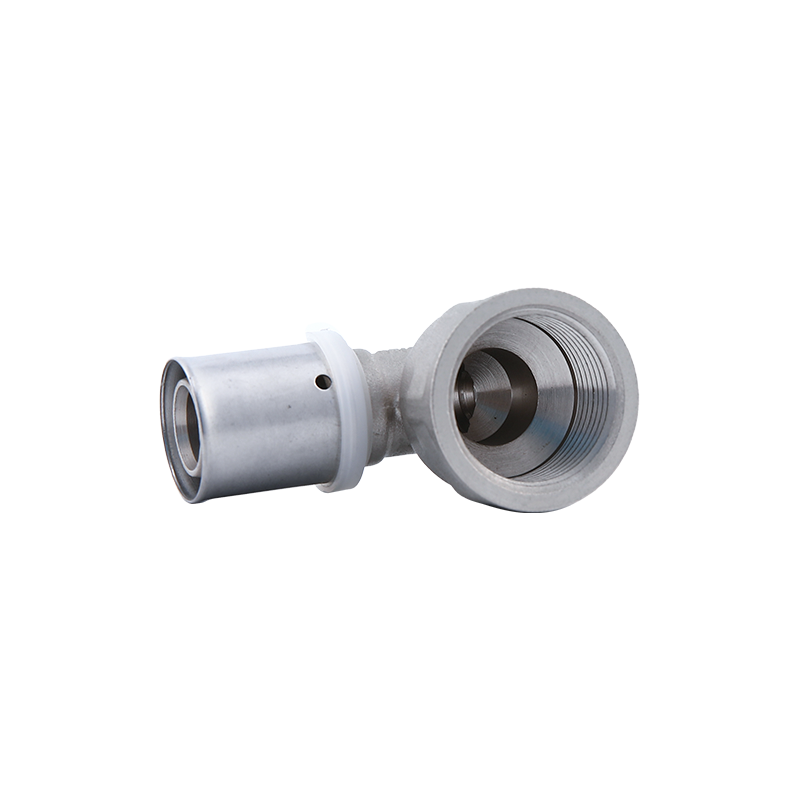

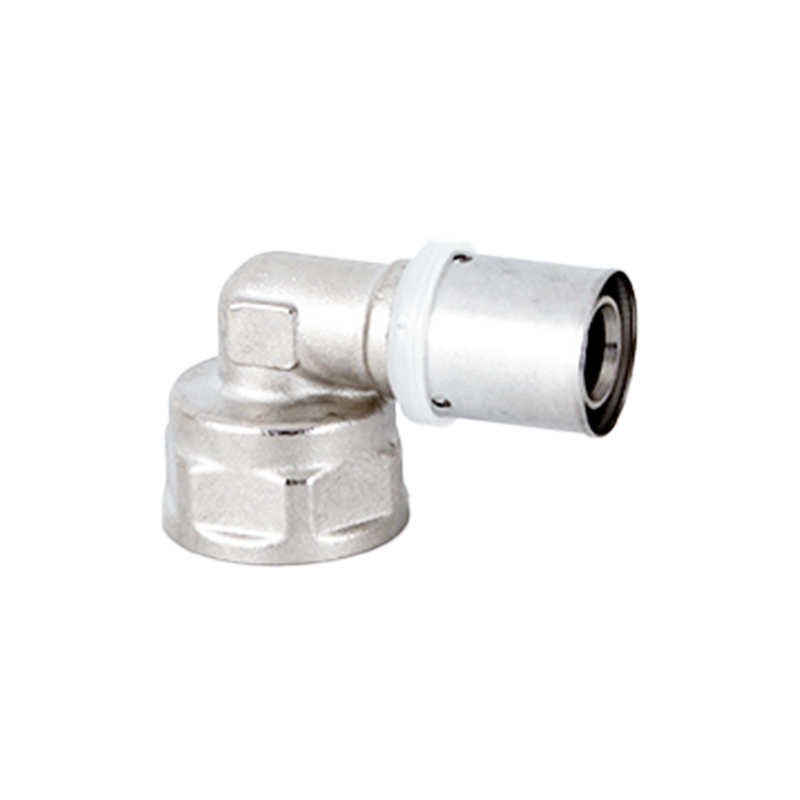

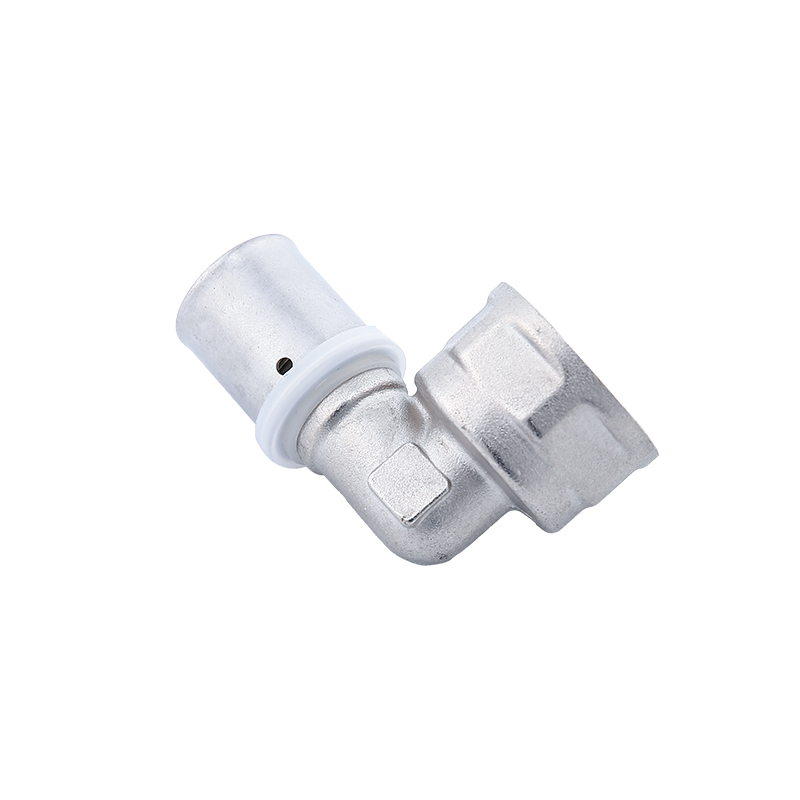

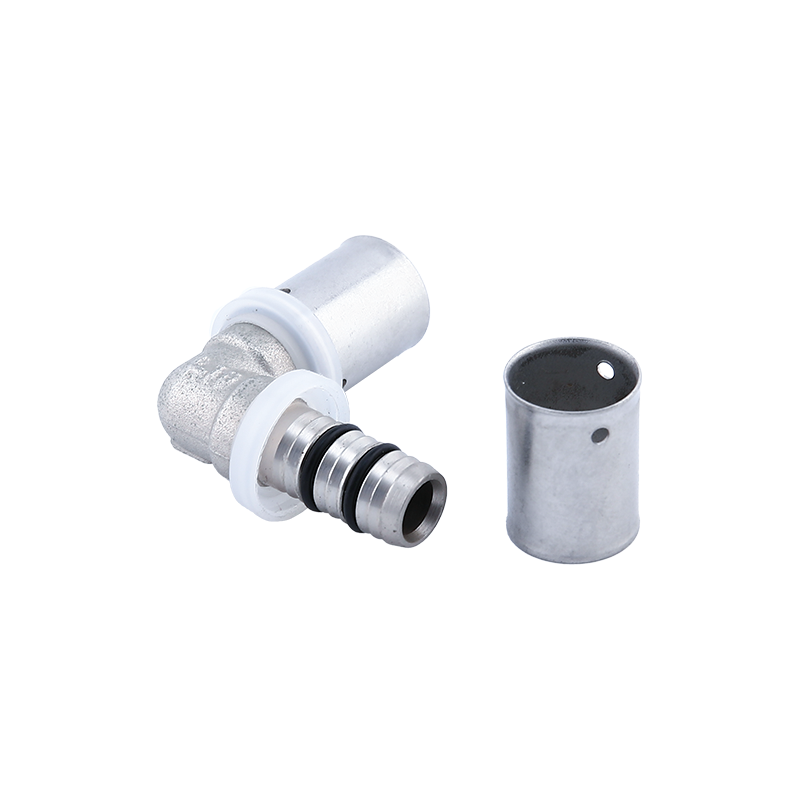

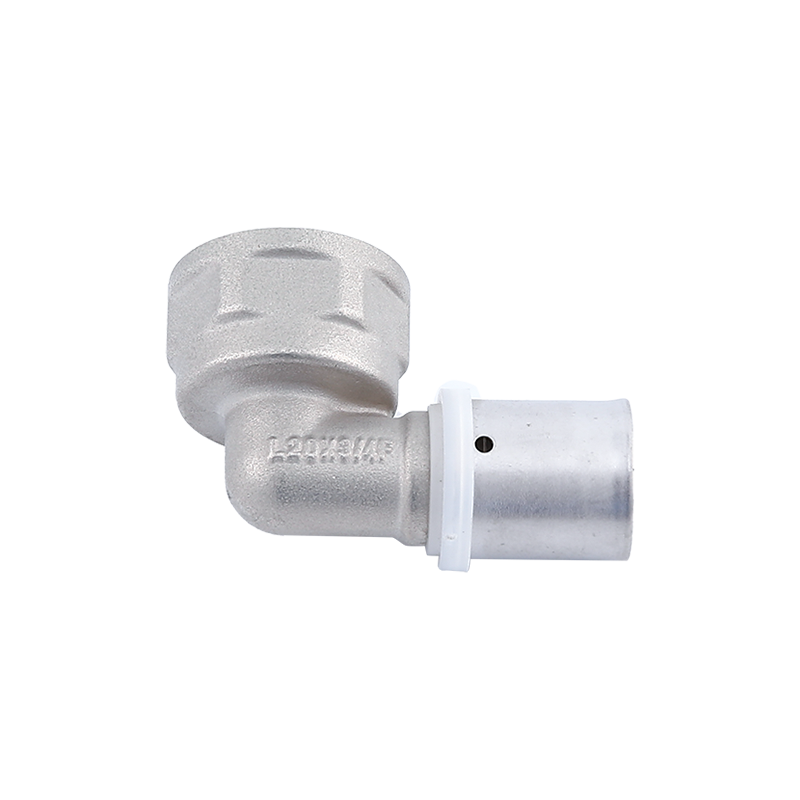

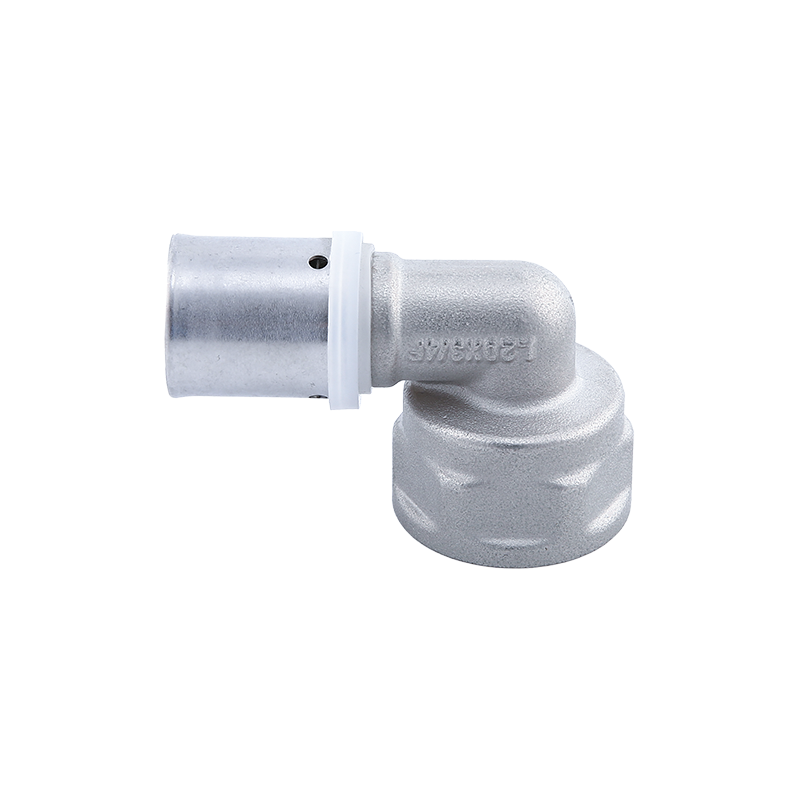

Female elbow |
16x1/2" 32x 1" 40x 11/4" 40x 1" 40x 11/2" 50x 11/2" 63x2" 75x21/2" |
42 54 72 66.5 75 75 104.5 113 |
11.8 25.8 31.8 31.8 31.8 40.8 50.7 59.6 |
G1/2 G1 G11/4 G1 G11/2 G11/2 G2 G21/2 |
