| Nominal pressure: |
PN ≤1.6MPa |
|
Working medium: |
Water, oil, non corrosive liquid, non flammable gas |
|
Working temperature: |
—20°C≤ T ≤100°C |
|
Pipe theread standard: |
Accord with ISO228 standard |
|
Description |

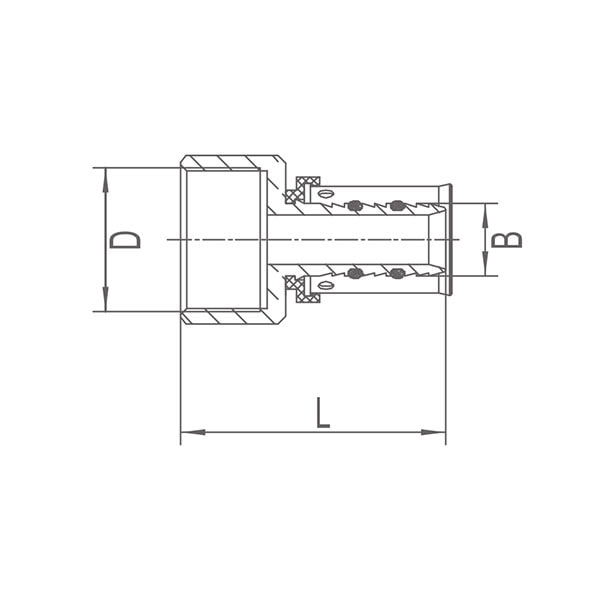

SIZE |
L |
B |
D |
|

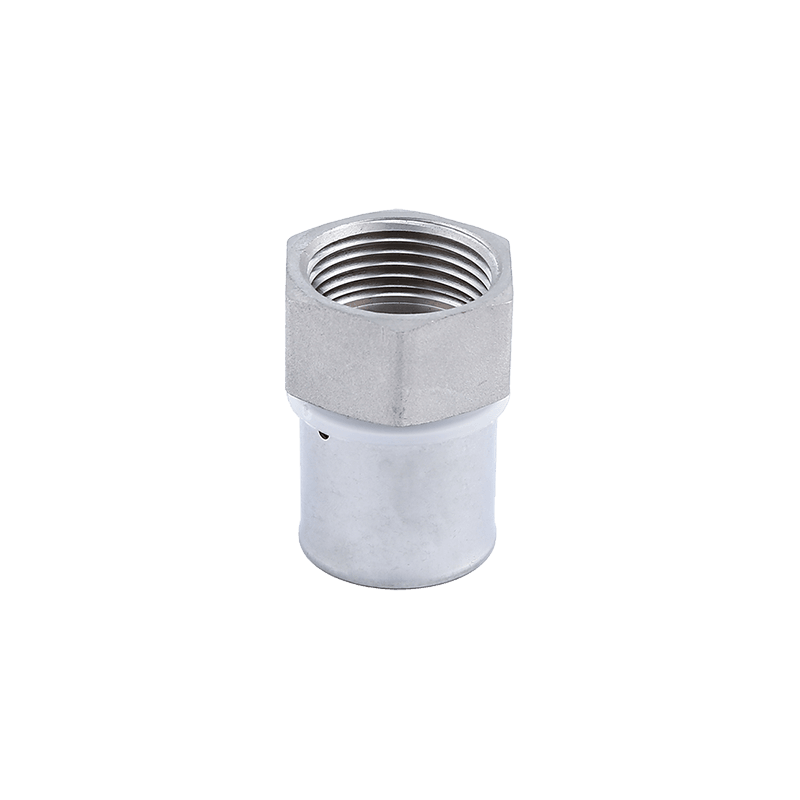

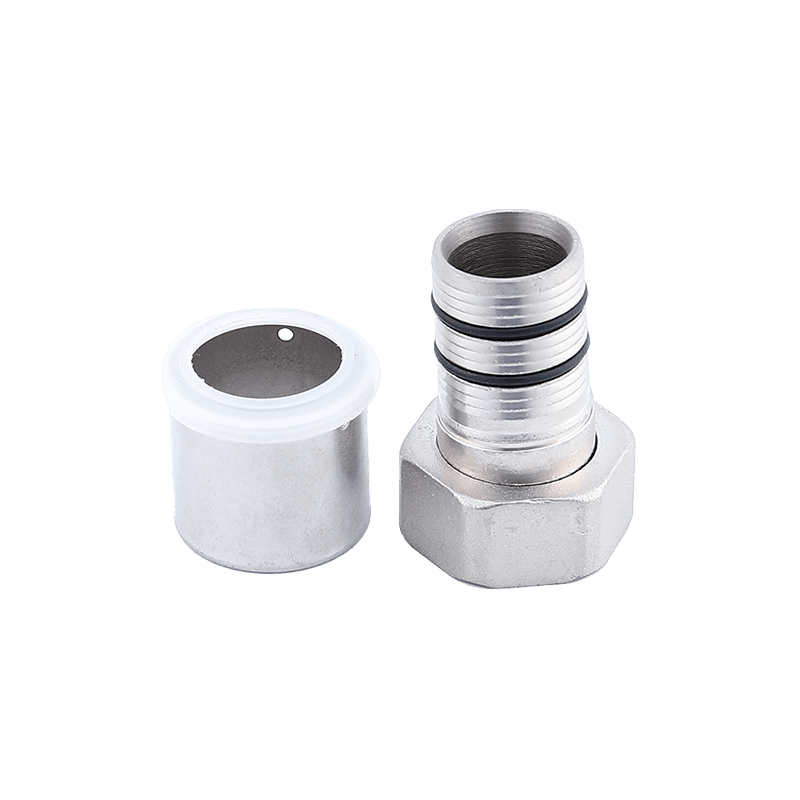

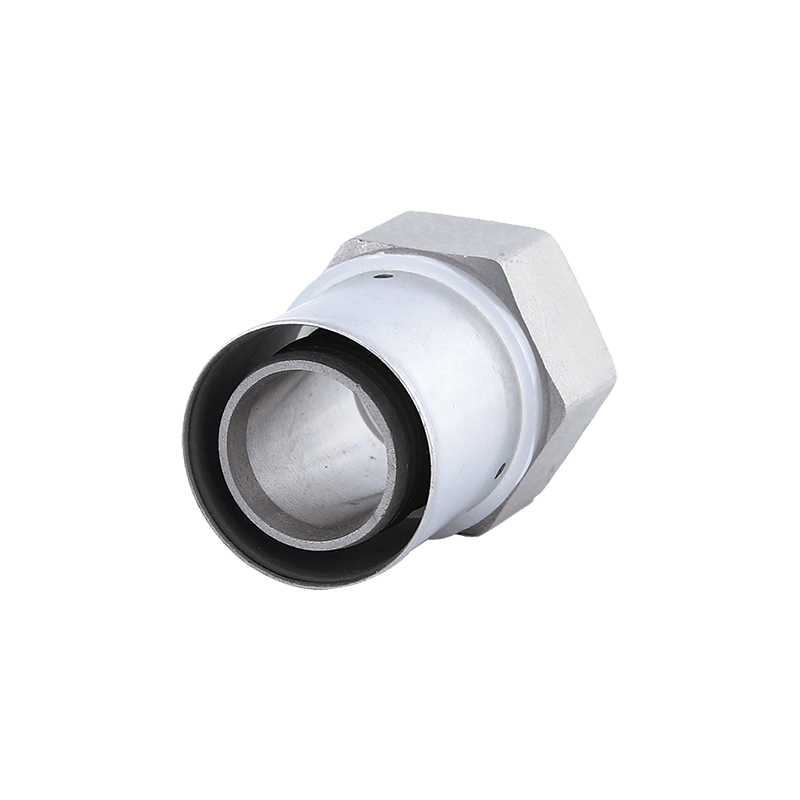

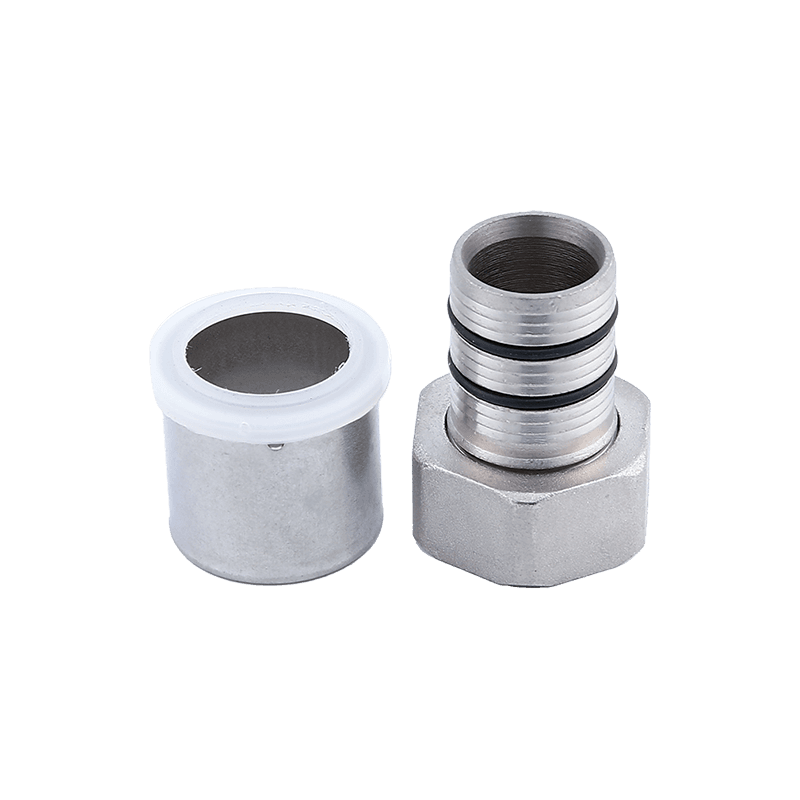

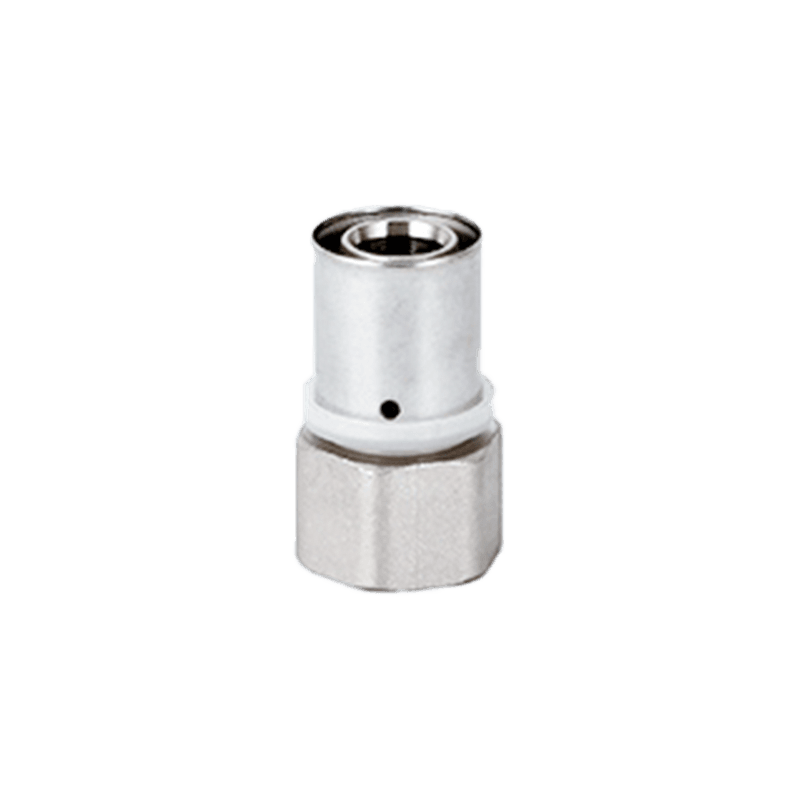

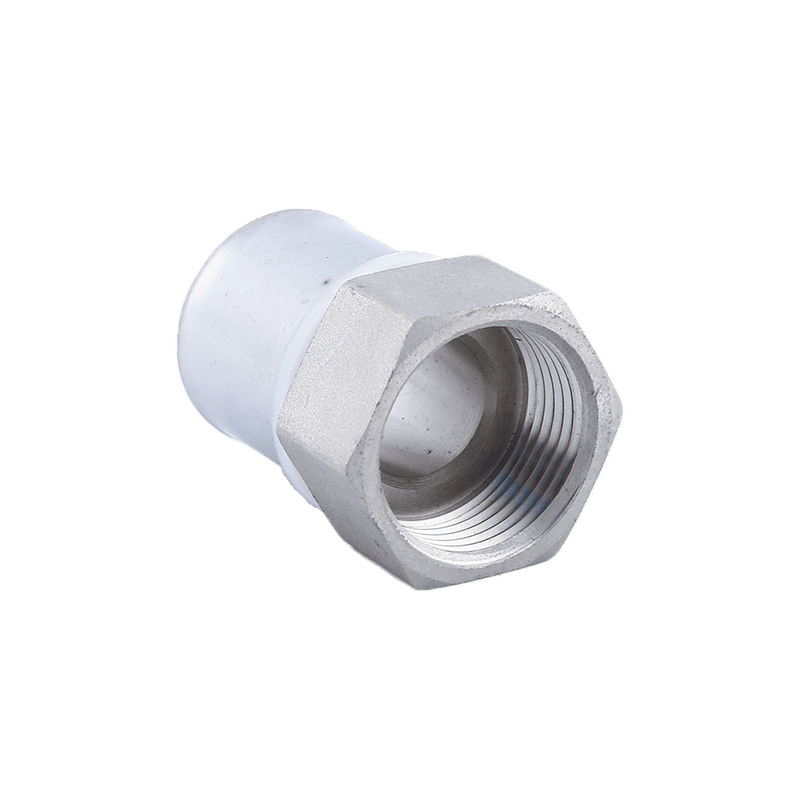

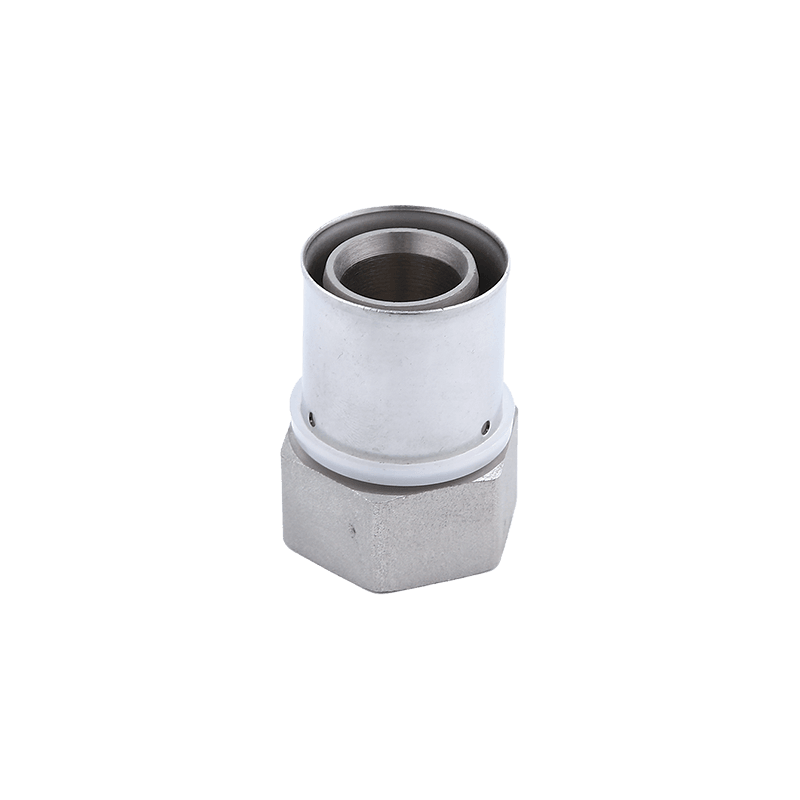

Female adapter |
25x1" 25x1/2" 20x3/4" 25x3/4" 32x3/4" 32x1" 32x11/4" 40x1" 40x11/4" 40x11/2" 50x11/4" 50x1" 50x11/2" 63x11/2" 63x1" 63x2" 75x21/2" |
52 49.5 44 50 50 52 54.5 66 70 68.5 70 66 69 92 88 98 103 |
19.8 19.8 15.8 19.8 25.8 25.8 25.8 31.8 31.8 31.8 40.8 40.8 40.8 50.7 50.7 50.7 59.6 |
G1 G1/2 G3/4 G3/4 G3/4 G1 G11/4 G1 G11/4 G11/2 G11/4 G1 G11/2 G11/2 G1 G2 G21/2 |
