| Nominal pressure: |
PN ≤1.6MPa |
|
Working medium: |
Water, oil, non corrosive liquid, non flammable gas |
|
Working temperature: |
—20°C≤ T ≤100°C |
|
Pipe theread standard: |
Accord with ISO228 standard |
|
Description |

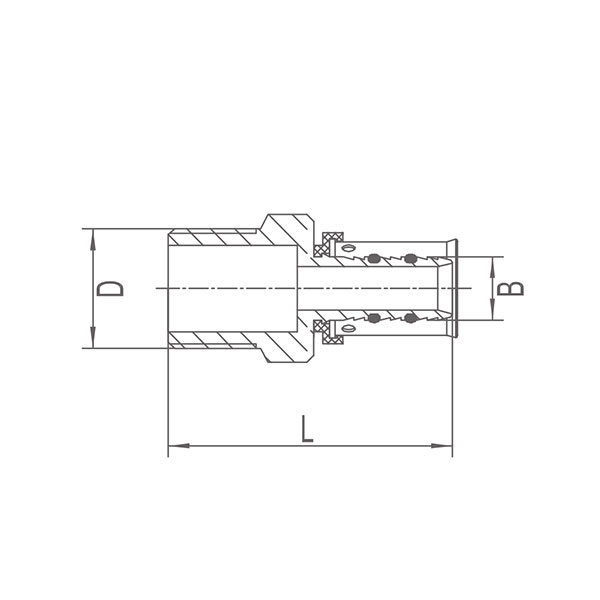

SIZE |
L |
B |
D |
|

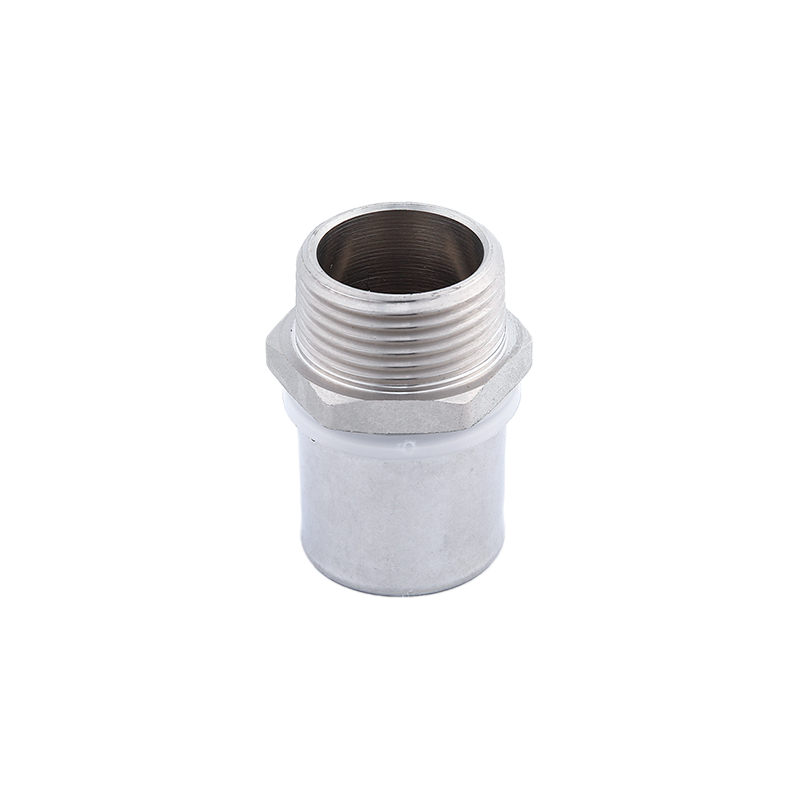

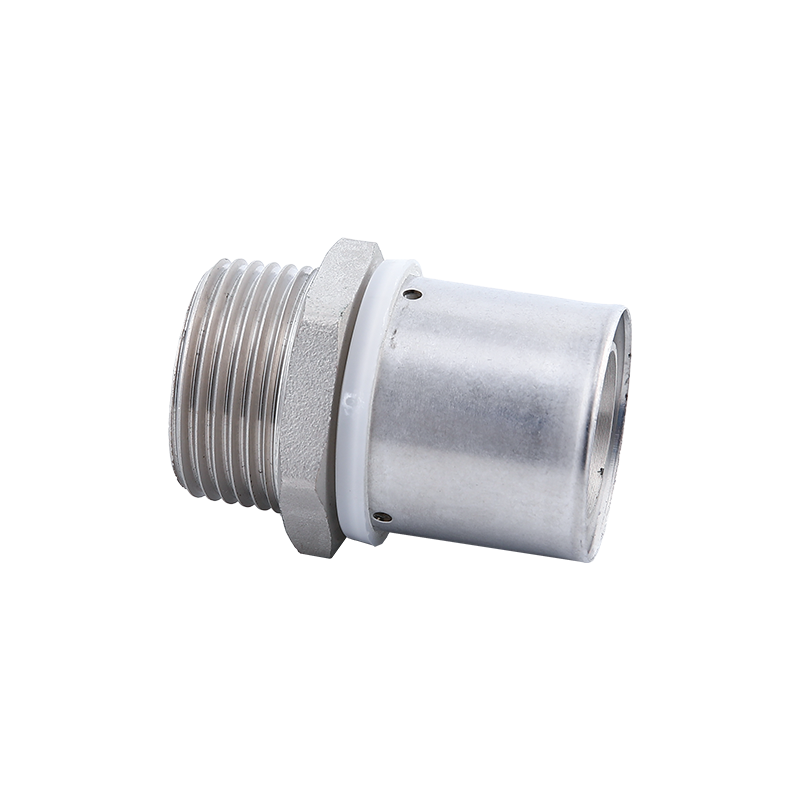

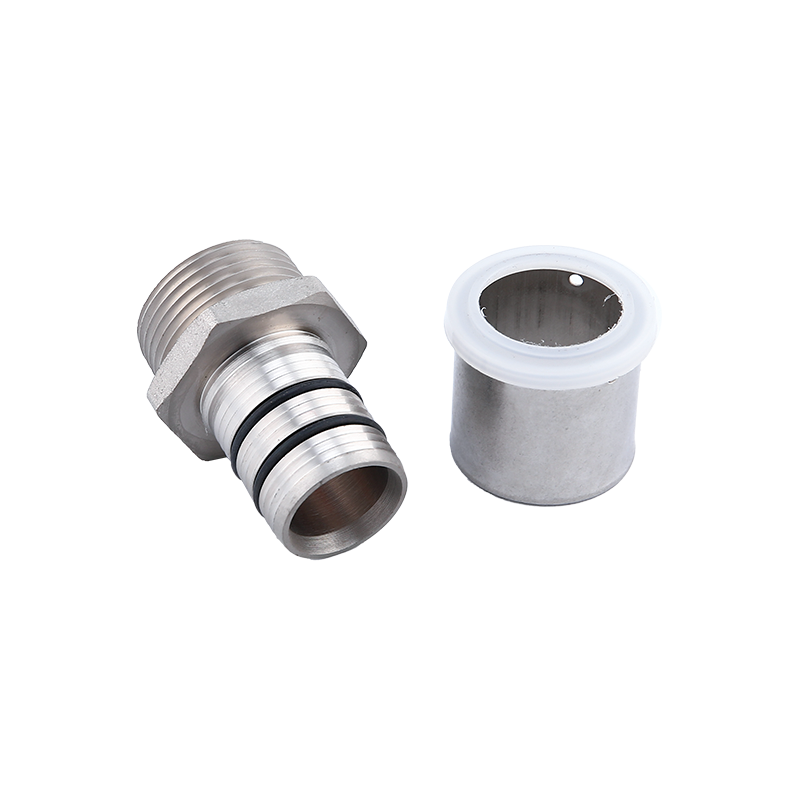

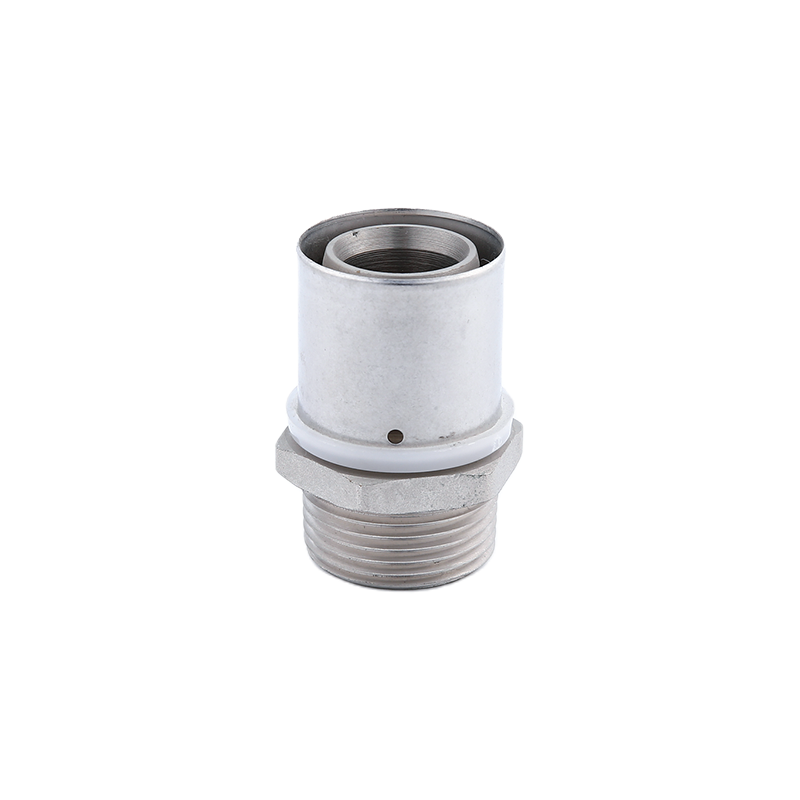

Male adapter |
25x 1/2" 16x 1/2" 32x1" 32x 11/4" 40x 1" 40x 11/4" 40x11/2" 50x 11/2" 50x2" 63x11/4" 63x 11/2" 63x 2" 75x21/2" |
52.6 46 55 66 76 79 79.5 79 84 101.5 103 107 115 |
19.8 11.8 25.8 25.8 31.8 31.8 31.8 40.8 40.8 50.7 50.7 50.7 59.6 |
R1/2 R1/2 R1 R11/4. R1 R11/4. R11/2 R11/2 R2 R11/4 R11/2 R2 R21/2 |
